Ultrasonic Water Meter DN350-DN600

Features:

● With Rectifier Function, Low Installation of Requirement of Straight Pipe.
● Suitable For Mass Flow And Tiny Flow Measurement.
● Configured With Remote Data Collector, Remotely Connect To Smart Metering Platform.
● IP68 Protection Class; Electrophoresis With Anti-Scaling.
● Low Consumption Design, Can Continuously Work For 10 Years.
● Bi-directional Measuring Forward And Reverse Flow.
● Data Storage Function Can Save 10 Years’ Data Including Day, Month and Year.
● Stainless Steel 304 Material For Drinking Water.

Get More Information

Summary

Specification

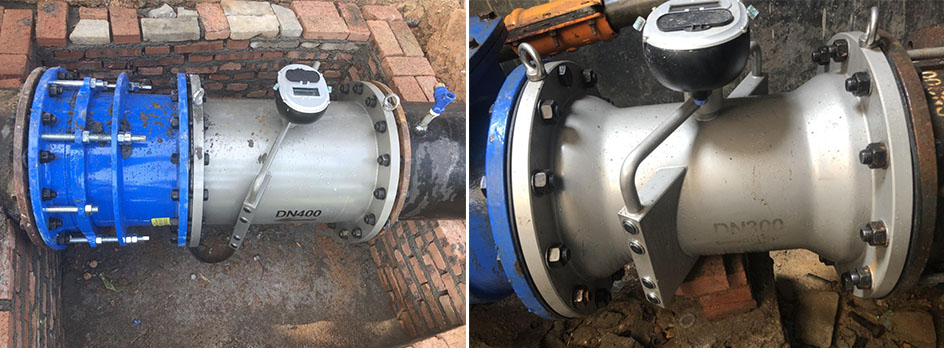

On-site Pictures

Application

PWM Ultrasonic Water Meter DN350-DN600

At present, the flow meter industry has problems such as high initial flow, inconvenient measurement of small flow, inaccurate measurement due to scaling, unstable and inconvenient connection of flow and pressure remote transmission. In response to the above water meter stiff pro blems, Panda has developed the latest generation product - PWM bulk smart ultrasonic water meter,which could integrate pressure function; the high turndown ratio can take into account the flow measurement of two types of ultrasonic water meters on the market, full bore . 304 stainless steel is used for one-time stretching, colorless electrophoresis to prevent scaling. The water meter is approved by National Health Inspection and Quarantine department and meets the sanitary standard for drinking water. Protection class is IP6 8.

Previous: Bulk Ultrasonic Water Meter DN50~300

Next: Prepaid Residential Ultrasonic Water Meter DN15-DN25

Transmitter

Max. Working Pressure	1.6Mpa
Temperature Class	T30, T50, T70, T90（Default T30）
Accuracy Class	ISO 4064, Accuracy class 2
Body Material	Stainless Steel SS304（Opt. SS316L)
Battery Life	10 years (Consumption ≤0.5mW)
Protection Class	IP68
Environmental Temperature	-40℃~70℃, ≤100%RH
Pressure Loss	ΔP10
Climatic And Mechanical Environment	Class O
Electromagnetic Class	E2
Communication	RS485(baud rate is adjustable), Pulse, Opt. NB-IoT, GPRS
Display	9 digits LCD display, can display cumulative flow, instantaneous flow, flow, pressure, temperature, error alarm, flow direction etc. at the same time
RS485	Default baud rate 9600bps (opt. 2400bps, 4800bps), Modbus-RTU
Connection	Flanges according to EN1092-1 (others customized)
Flow Profile Sensitivity Class	U5/D3
Data Storage	Store the data, including day, month and year for 10 years. The data can be permanently saved even powered off
Frequency	1-4 times/second
