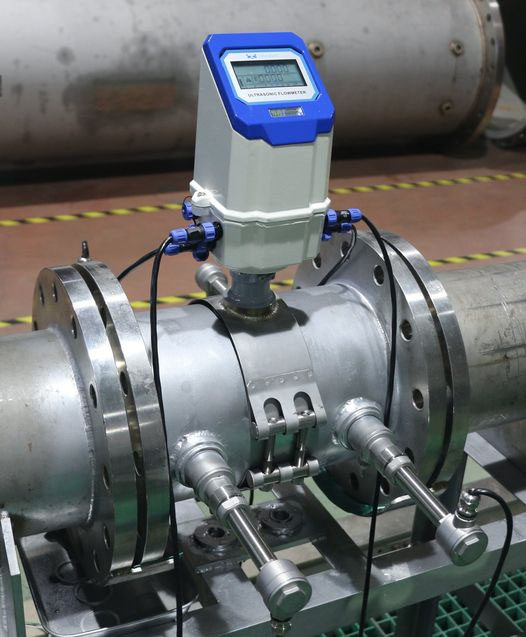

PUTF206 Battery Powered Multi Channel Ultrasonic Flow Meter

Features:

● Installation Without Flow Stop, Unnecessary Pipe Cutting Or Processing Interruption, Widely Used In Carbon Steel Pipe, Cement Pipe, Ductile Iron Pipe, Plastic Pipe Etc.
● LCD Display Velocity, Flow Rate And Volume.
● Low Starting Flow, High Accuracy, Bi-directional Measurement.
● Adopting Ultrasound Measuring, No Moving Parts Ensure Stable And Reliable Long-term Working.
● Battery Powered, Low Consumption Design, Battery Can Continuously Work For 6 Years.
● No Need External Power Supply, Suitable For Various Occasions Without Power Supply.
● Fluid Temperature Range -40℃~160℃.
● Configured With Wireless Remote Reading Device.
● Suitable For DN65-DN6000 Flow Measurement.
● With Self-diagnosis Function, Prompt Error Messages When Abnormal Conditions Occur To Ensure Safe Operation.

Get More Information

Summary

Specification

On-site Pictures

Application

Battery powered transit-time multi-channel insertion ultrasonic flow meter utilizes transit-time principle. No need external power supply and suitable for various occasions without power supply. It effectively solves problems that clamp-on flow meter can't accurately measure while scaling pipe and non-conductive media. Insertion transducer with stop valve is unnecessary to stop flow or cut pipe for installation and maintenance. For unable directly drilling pipe, need to mount hoops while installation. It is widely applied in water supply and drainage, production monitoring, energy-saving monitoring etc.as easy installation and simple operation advantages.

Previous: PUDF301 Clamp-on Doppler Ultrasonic Flow Meter

Next: PUTF208 Multi Channel Ultrasonic Flow Meter

Transmitter

Measuring Principle	Transit-time
Velocity	0.1m/s - 12m/s, Bi-directional Measurement
Resolution	0.25mm/s
Repeatability	0.10%
Accuracy	±1.0%R, ±0.5%R(flow rate＞0.3m/s), ±0.003m/s(flow rate＜0.3m/s)
Response Time	0.5s
Suitable Fluid	Clean or tiny amounts of solids, air bubbles liquid, Turbidity <10000 ppm
Power Supply	3.6V Battery
Protection Class	IP65
Environmental Temperature	-40℃ ~ +75℃
Enclosure Material	Die-cast aluminum
Display	9 digits multi-line LCD display. Can display cumulative flow, instantaneous flow, flow rate, error alarm, flow direction etc. At the same time.
Measuring Unit	meter, m³, liter
Communication Output	RS485(baud rate adjustable), Pulse, NB-IoT, GPRS etc.
Data Storage	Store the latest 10 years’ data including day, month and year. Data can be permanently saved even powered off.
Size	19910972mm
Weight	1kg

Transducer

Protection Class	IP68
Fluid Temperature	Std. transducer: -40℃~+85℃ (Max. 120℃)
Fluid Temperature	High temp: -40℃~+160℃
Pipe Size	65mm-6000mm
Transducer Type	Std. transducerExtended transducer
Transducer Material	Stainless Steel
Channel Type	Single-channel, dual-channel, four-channel
Cable Length	Std. 10m(customized)
