Panda High-Precision Piston Water Meter Calibration Test Bench

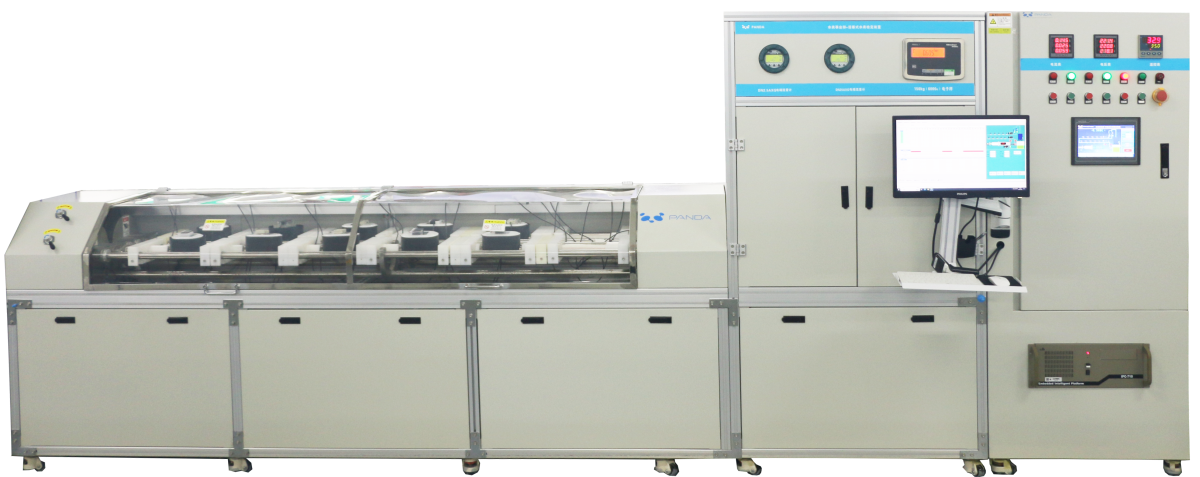

Panda high-precision piston water meter calibration test bench consists of a water source system, a piston system, a meter clamping pipeline, a flow regulating device, a standard device system, a commutator device, and a software control system. An electronic scale isused for real-time comparison with the piston, Automatic meter inspection, one-button operation; the pump group uses our Panda SRl vertical multi-stage centrifugal pump, and the device has a built-in heating and constant temperature system.
Features：
● Supports the verification and calibration of ultrasonic water meters, ultrasonic heat meters and mechanical water meters.
● Supports automatic modification, addition, and editing of communication protocols
● Supports the addition and customization of external control points such as valves.
● Different users and management levels can be added.
● The software supports the verification of the start-stop method, commutator method. and
● flow-time method.
● The software standard can select the mass method, standard meter method, and piston method.
● Supports self-verification of the commutator. The testing system supports pulse acquisition, image acqulsition, M-BUS, and RS485/232acquisition
● Record management function, users can query, preview, print, and manage records, and can customize the format of verification records and verification certificates.
Number of meters tested:
DN15(165mm) 16 pcs
DN20 (195mm) 14 pcs
DN25 (225mm) 12 pcs
|
Model |
XMCK25-V30-1 |
|
Flow Range |
(0.002—8)m³/h |
|
Piston Specifications |
Volume 22L/Resolution 0.036ml/Pressure PN16/Panasonic Servo Drive |
|
Master Device |
Electronic Scale+Piston |
|
Master Device Specs |
METTLER TOLEDO 120kg/6000e |
|
Weighing Container |
120L |
|
Pump |
Panda SRI5-16 2.2KW/111m/8m³/H |
|
Electromagnetic Flowmeter |
Yokogawa AXG/DN2.5+DN25 |
|
Commutator |
DN25 |
|
Temperature Sensor |
PT100, Accuracy Class A Installed At Inlet And Outlet |
|
Pressure Sensor |
Pressure Transmitter With An Accuracy Of 0.5% Is Installed At The Inlet And Outlet |
|
Test Methods |
Start-Stop Method + Commutator Method |
|
Uncertainty |
≤0.2% (k=2) |
|
Pressure range |
0-1.6Mpa |
|
Environment Temperature |
15-30℃ |
|
Relative humidity |
(45%-75%) |
|
Atmospheric pressure |
(86-106) kPa |
